Crystal Wafer Manufacturing Process: From Crystal Growth to Cleanroom Packaging
Every step of our LiNbO3, LiTaO3 and quartz wafer production runs in-house at our Zhuji, Zhejiang facility — from crystal growth through precision lapping, polishing, cleaning, inspection and cleanroom packaging.
Full In-House Wafer Processing Capability
From crystal growth to cleanroom packaging, every step runs on our own production line in Zhuji — nothing is outsourced piecemeal across vendors. We also offer contract wafer processing services for customer-supplied crystal materials. Detailed process parameters are proprietary and not published here.
Precision Wafer Processing & Metrology Equipment
A look at the slicing, edge processing, lapping, polishing, cleaning and inspection equipment running on our production line for LiNbO3, LiTaO3 and quartz wafers.

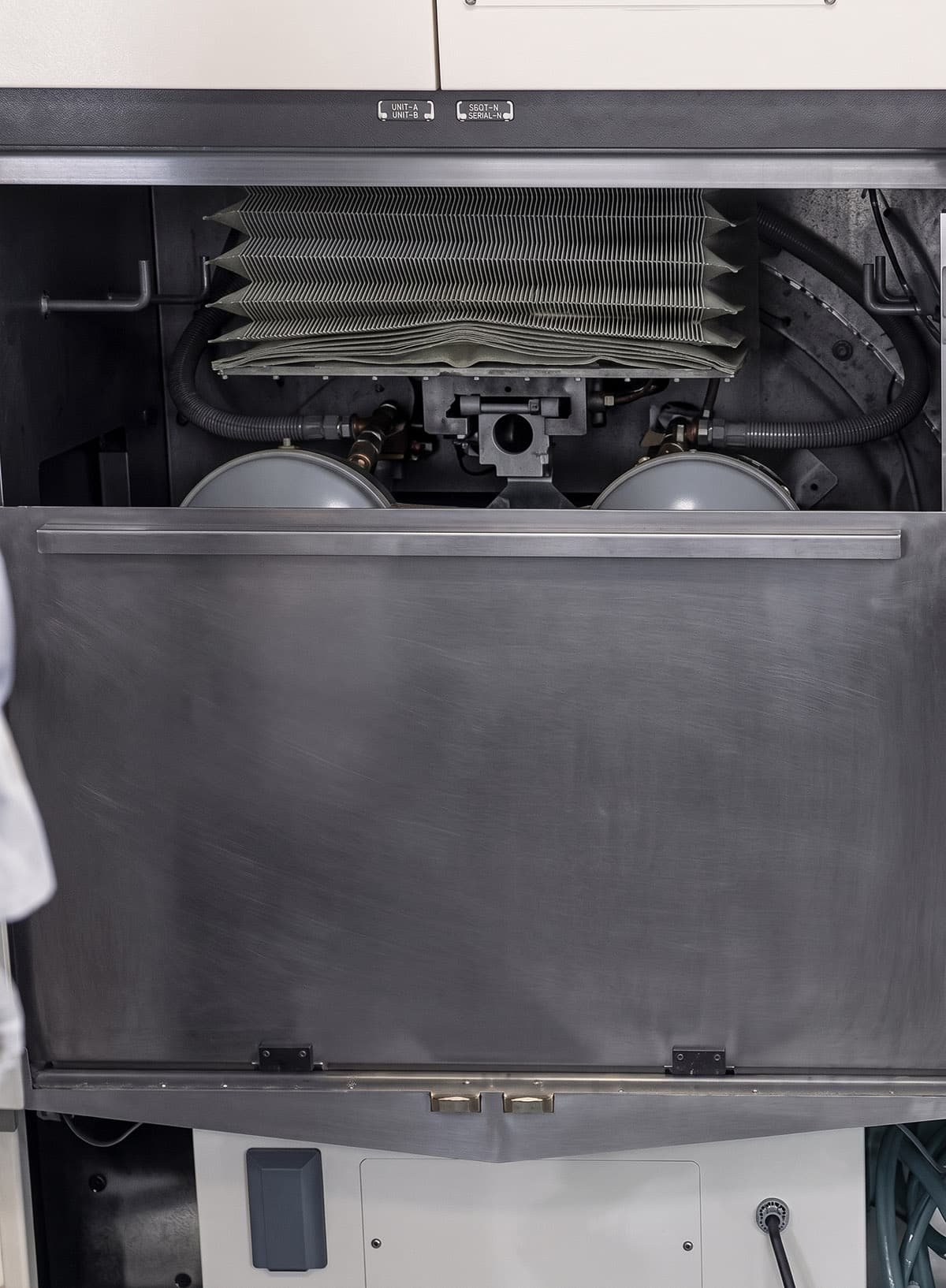

Wire Saw
Slices crystal boules into individual wafers.

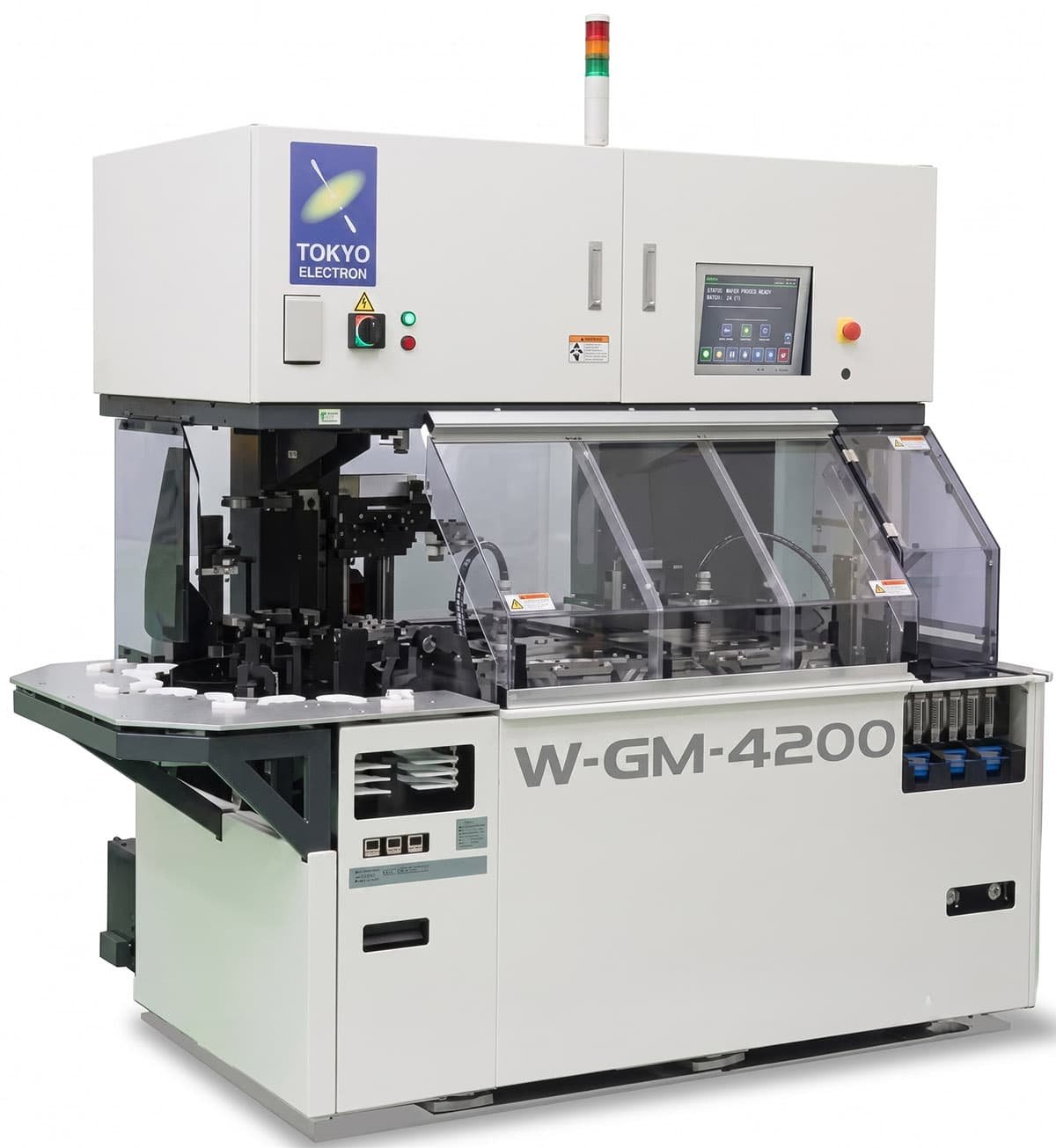

Chamfering Machine
Tokyo Seimitsu W-GM-4200, for wafer edge rounding.
Precision Edge Processing
Close detail of wafer edge and surface processing.
Double-Side Lapping Machine
For wafer flatness and thickness uniformity.

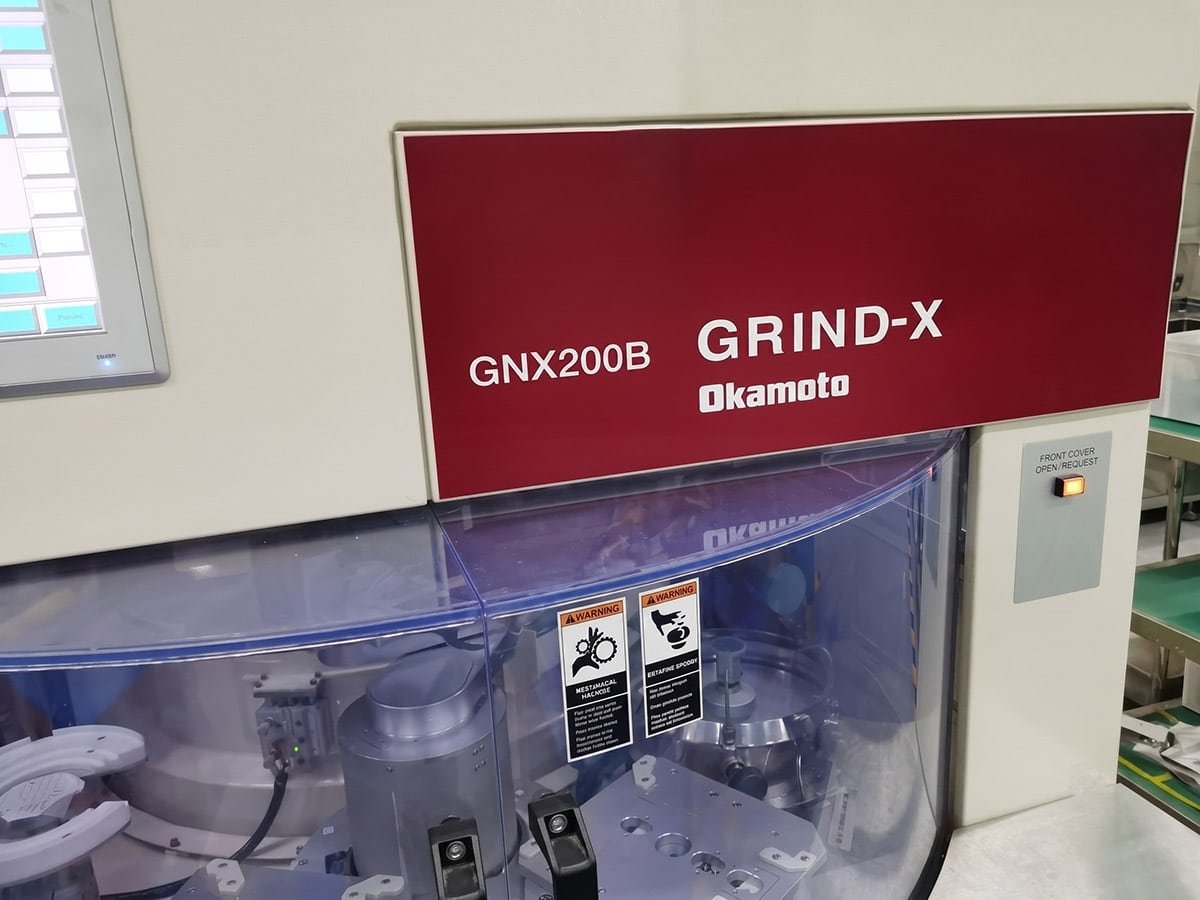

Precision Thinning Grinder
Okamoto GNX200B, for tighter thickness specs.

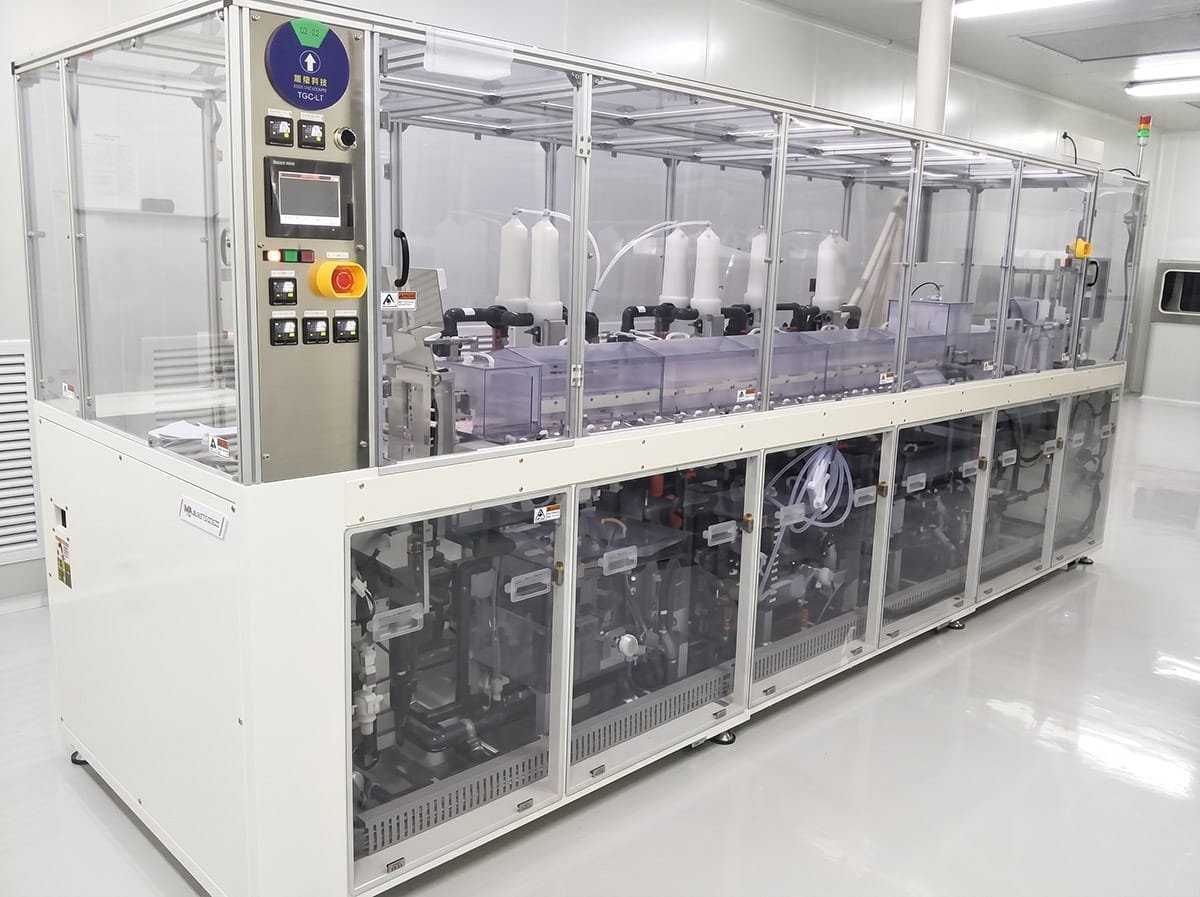

Single-Wafer Scrubber
Ultra-clean single-wafer scrubbing line.

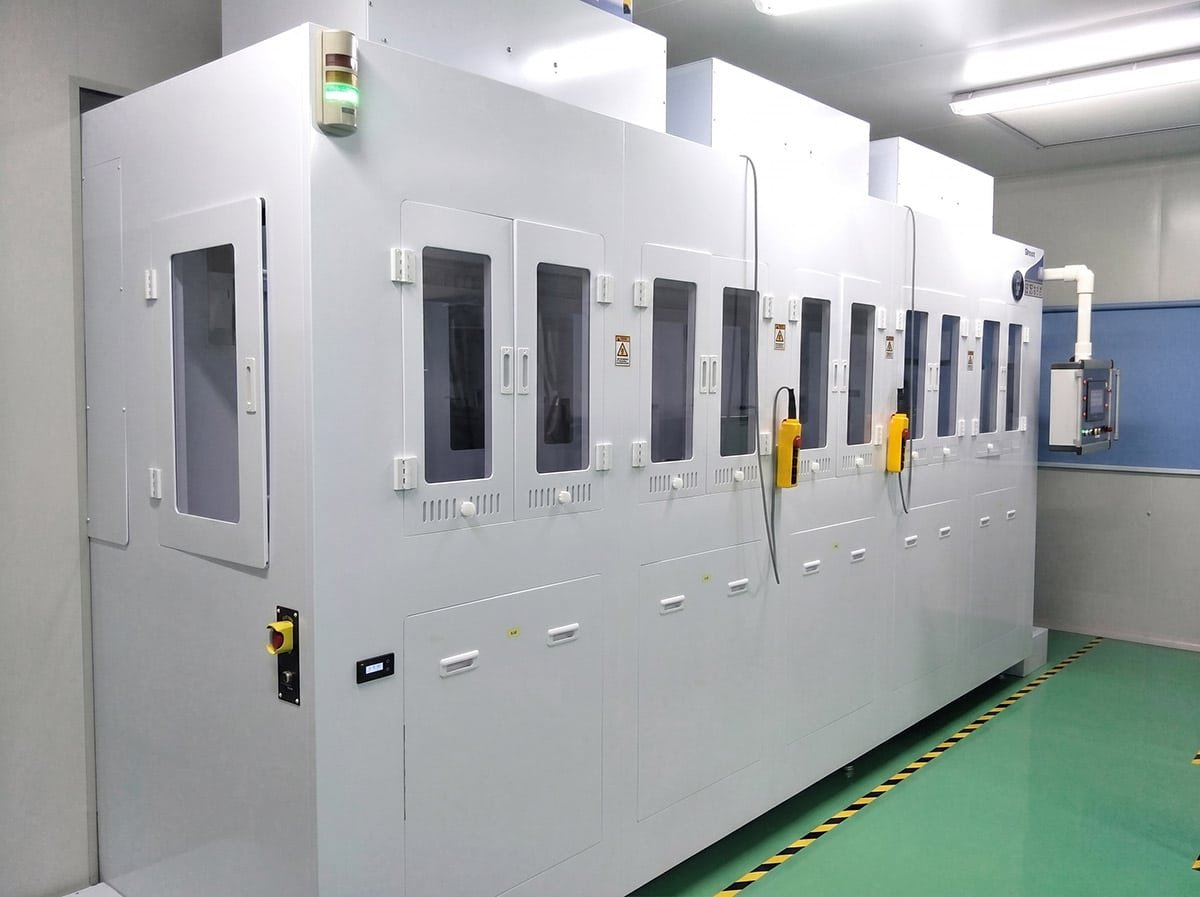

Batch Cleaning Machine
High-throughput batch cleaning for 4" and 6" wafers.

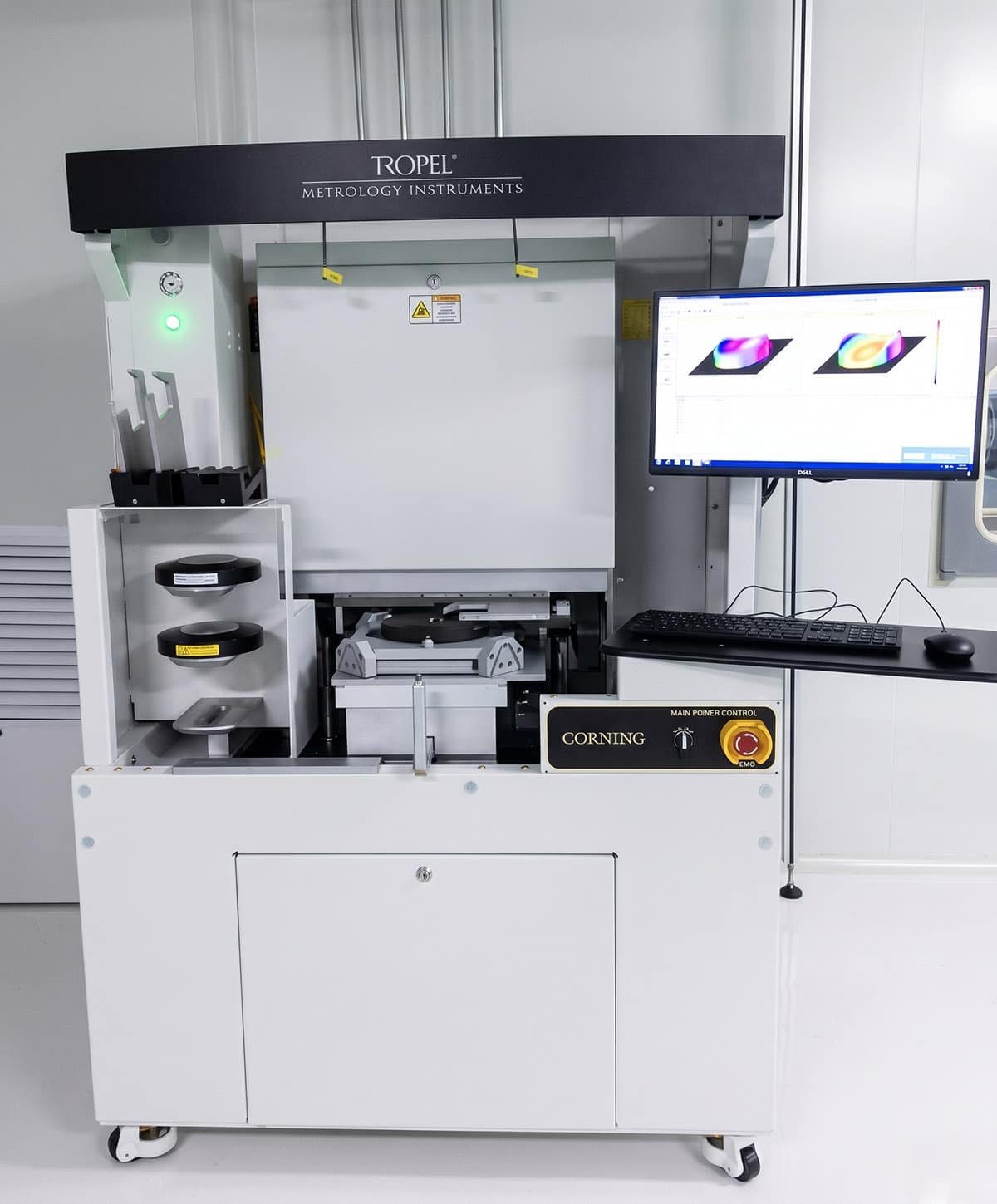

Optical Metrology
TROPEL system, for flatness, warp and thickness measurement.

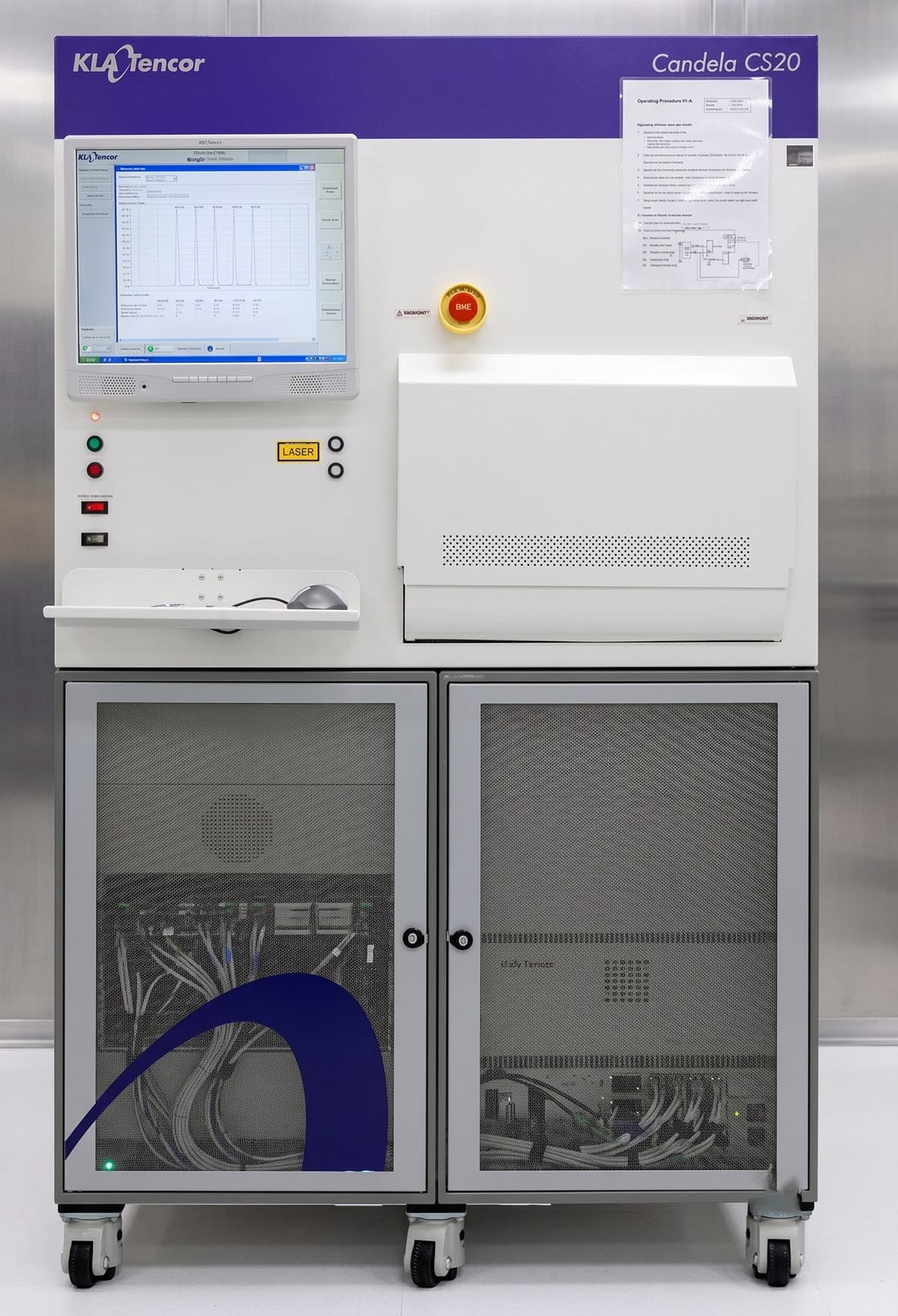

Particle Inspection
Candela CS20, for particle, scratch and stain detection.
Quality Control: Dimensional, Surface & Electrical Inspection
Every batch passes through three inspection categories before packaging.
Dimensional Metrology
TROPEL optical metrology measures flatness, warp, thickness uniformity and shape.
Surface & Particle Inspection
Candela CS20 detects particles, scratches, pits, dimples and stains on the wafer surface.
Electrical Testing
Keithley 6517B Electrometer measures bulk resistivity and conductivity.
Cleanroom Inspection & Packaging
After passing dimensional, surface and electrical inspection, wafers are sample-checked by hand and vacuum-sealed in a cleanroom environment ahead of shipment — protecting surface quality all the way to your line.
View wafer processing services →One Facility, One Point of Contact
Crystal growth, slicing, lapping, polishing, cleaning and inspection all run under one roof in Zhuji — not a patchwork of outsourced vendors. That means one team accountable for quality and timing at every stage.
Learn more about our facility →ISO 9001:2015
Quality management
ISO 14001:2015
Environmental management
High-Tech Enterprise
National certification
Need Wafers Processed to Your Spec?
Whether it's a standard LiNbO3, LiTaO3 or quartz wafer order, or contract processing on your own crystal material, our team can walk you through diameter, grade and thickness options.
